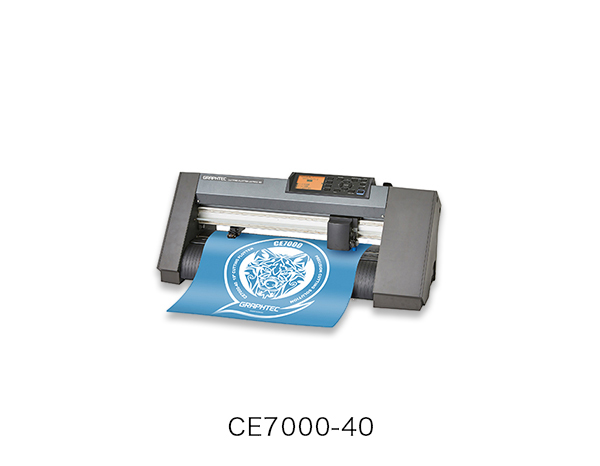

| CE7000-40 | |
|---|---|
| Maximum cutting range (width x length) |
375mm×50m |
| Installable paper width | 484mm(19 inch） |

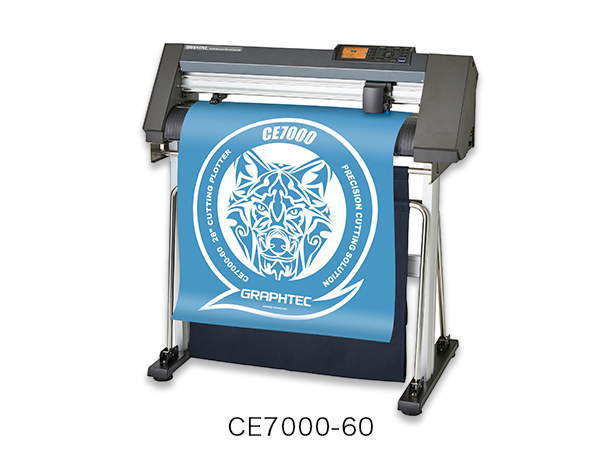

| CE7000-60 | |
| Maximum cutting range (width x length) |
603mm×50m |
| Installable paper width | 712mm(28 inch） |

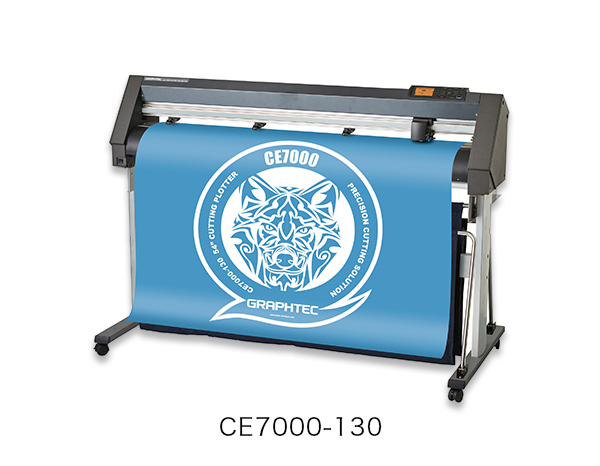

| CE7000-130 | |
| Maximum cutting range (width x length) |
1270mm×50m |
| Installable paper width | 1372mm(54 inch） |

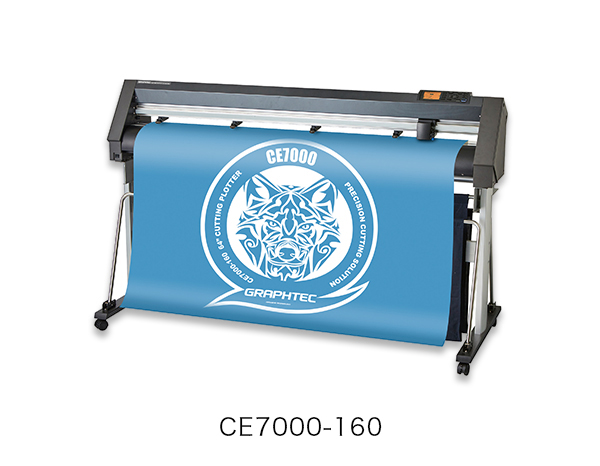

| CE7000-160 | |
| Maximum cutting range (width x length) |
1524mm×50m |
| Installable paper width | 1626mm(64 inch） |
- FE News»
- PPS News»
- Apr. 15, 2024
- Holiday Closing Notice [Spring 2024]
- Oct. 02, 2023
- [News Release R-1018]Compound that achieves a genuine finish Full Renewal of “KATANA” Series
- Jun. 27, 2023
- [News Release] A final finishing compound that achieves a beautiful wet gloss. "KATANA DARK-SHOT" is Released.
- May. 22, 2023
- [News Release] Full renewal of buffing pad category Brand integrated into HAYABUSA
- Apr. 12, 2023
- Announcement of Office Relocation

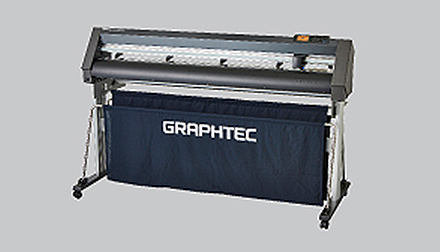

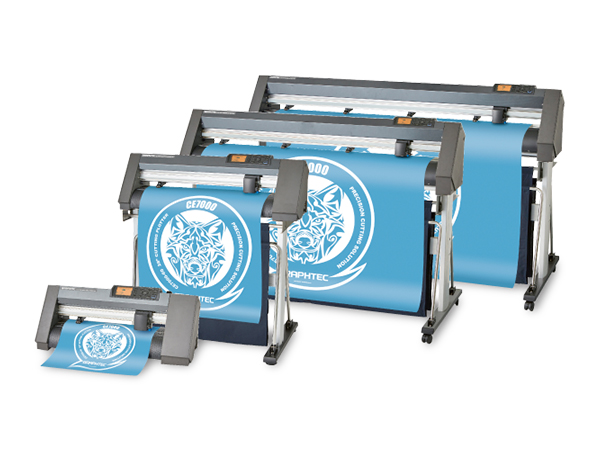

Graphtec CE7000 Series Cutting Plotter
| Product name [ordering code] | Regular price | Member price | Qty |
|---|---|---|---|
|
Graphtec CE7000-40 19inch(484mm) [p400-15] |
|||
|
Graphtec CE7000-60 28inch(712mm) [p400-16] |
|||
|
Graphtec CE7000-140 54inch(1372mm) [p400-17] |
|||
|
Graphtec CE7000-160 64inch(1626mm) [p400-18] |
|||

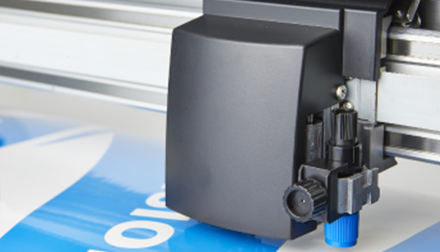

Advantage 1: Maximum cutting pressure 4.41N, maximum speed 1000mm/s
With a maximum force of 4.41N (450gf) and a maximum speed of 1000mm/s(*1), you can cut various media with high productivity.
(*1) CE7000-130 / CE7000-160
Advantage 2: Cutting performance with guaranteed precision for lengths up to 5m
A media stocker provides stable delivery of the media. Using an optional dedicated basket provides stability for long cuts as well.
(*2) This applies when using the CE7000-60/130/160 dedicated basket and cutting with our specified media and conditions.

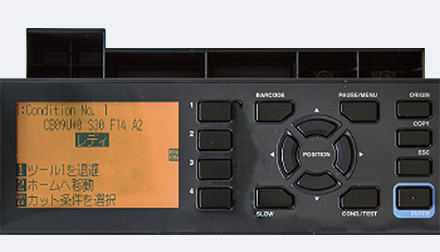

Advantage 3: Easy-to-use control panel
The plotter is equipped with a large, highly visible 3.7inch LCD screen and an extremely easy-to-use control panel with 10 different languages.
Standard accessories
- ● AC power cable
- ● USB cable (2.9m)
- ● Cutter blade (CB09UB-1P)
- ● Plunger for water-based fiber tip pen (PHP31-FIBER)
- ● Paper roll tray (for CE7000-40 only)
- ● Carrier sheet A3 size (for CE7000-40 only)
- ● DVD included (user manual, Graphtec Pro Studio (1 license), Graphetc Studio (Mac), Cutting Master 4, Windows driver)
- ● Cutter blade user manual
- ● Warranty
- ● 2 to 3 prong adapter
- ● Cutter plunger (PHP33-CB09N-HS)
- ● Magnifying glass for cutter blade adjustment(PM-CT-001)
- ● Water-based fiber tip pen (KF700-BK)
- ● Complete stand set (included with CE7000-60/130/160)
- ● Carrier sheet table (for CE7000-40 only)
- ● Setup manual
- ● How to use correctly and safely
