Atomization method | LVMP | HVLP | ||||
---|---|---|---|---|---|---|
Air cap No. | TE10 | TE20 | HV30 | |||
Nozzle aperture Φmm | 1.3 | |||||
Paint supply | G (Gravity type) | |||||
Pattern width mm | 285 ~ 300 | 275 ~ 290 | 290 ~ 315 | |||
Air consumption NL/min | 310 | 340 | 440 | |||
Pressure at nozzle MPa | 0.2 | |||||
Spray volume ml/min | 160~190 | 170~200 | 150~190 | |||
Includes cup / Lightweight spray gun | 629 | |||||
Air intake | G 1/4 | |||||
Paint intake | Special type | |||||
Use/Other | For base coats and clear coats | For base coats and clear coats | For water-based paints |
- FE News»
- PPS News»
- Jun. 23, 2025
- Notice of Specification Change for ECHELON Zen-Xero Series Maintenance Bags
- Oct. 31, 2024
- [News Release R-1020] Release of "ECHELON Zen-Xero DYNAMIX”
- May. 15, 2024
- [News Release R-1019] Release of "ECHELON Ver.3.0”
- Oct. 02, 2023
- [News Release R-1018]Compound that achieves a genuine finish Full Renewal of “KATANA” Series
- Jun. 27, 2023
- [News Release] A final finishing compound that achieves a beautiful wet gloss. "KATANA DARK-SHOT" is Released.

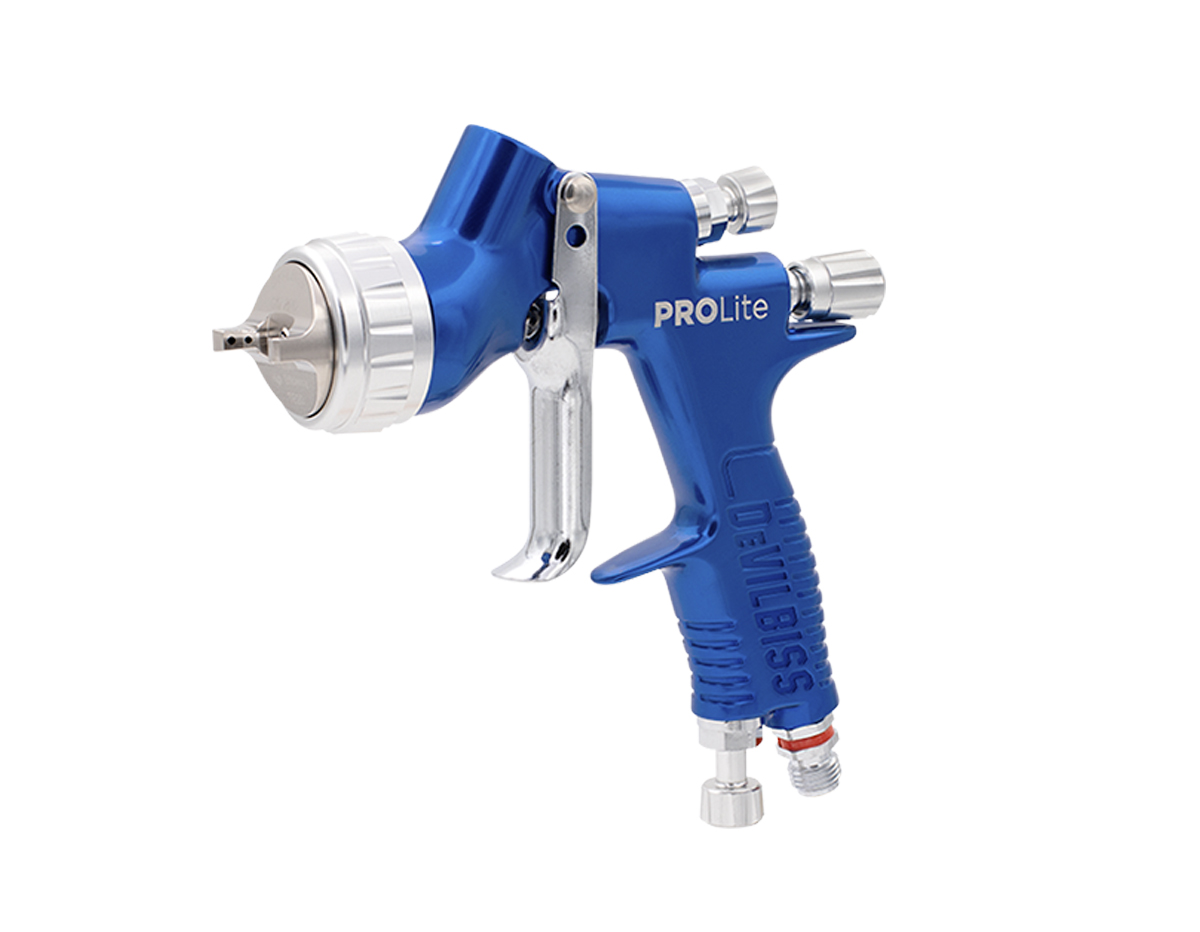

DeVilbiss PRO Lite Series (with Cup)
Product name [ordering code] | Regular price | Member price | Qty |
---|---|---|---|
DeVilbiss PRO Lite Series (with Cup) LVMP TE10 [03448-05] |
|||
DeVilbiss PRO Lite Series (with Cup) LVMP TE20 [03448-04] |
|||
DeVilbiss PRO Lite Series (with Cup) HVLP HV30 [03448-06] |
The PRO Lite was created for professionals seeking speed and high-quality finishes.
Inheriting the excellent performance and ergonomic grip of the GTi Pro, it achieves 25% weight reduction and reaches
an even higher level of performance.

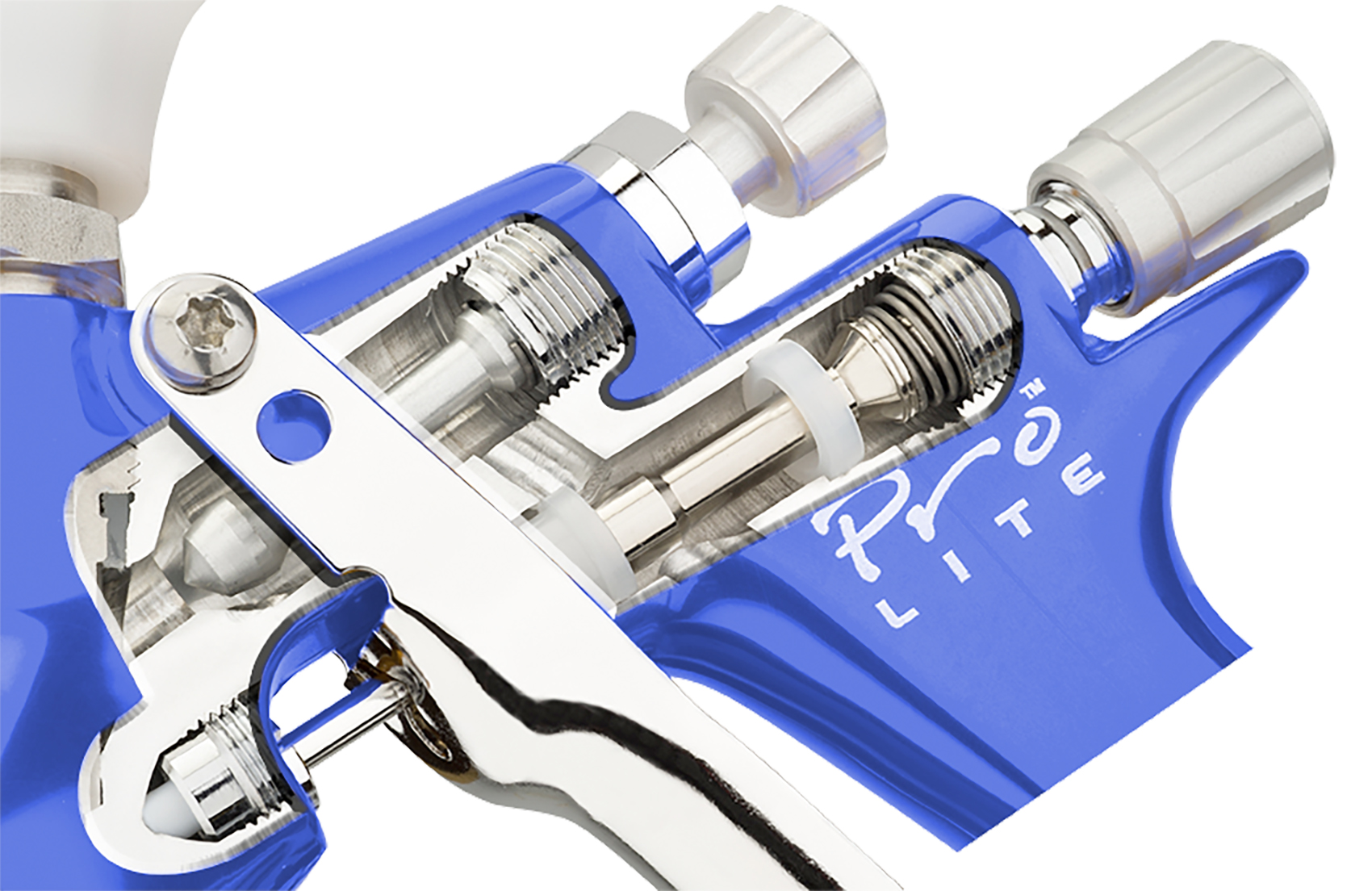

With the adoption of an internally built air valve, it shortens cleaning and maintenance time while delivering ideal
paint-air mixing and seamless trigger operation for precise control.
- ● Built with precisely machined, lightweight, and highly durable alloy components. 25% lighter and more robust than the GTi Pro.
- ● Improved fit and operability. Offers exceptional balance and maneuverability.
- ● Internal air valve prevents kickback. Smooth trigger operation and easy cleaning and maintenance.


Excellent maintainability
Regular cleaning and careful maintenance are essential to maintain spray gun performance. The PRO Lite is designed
to make these tasks quick and easy.
Comes with two dedicated chrome-plated tools for safe and smooth disassembly and reassembly. The included Torx
wrench for the trigger also supports the auto-adjusting needle packing, while the wrench can be used for all fixed
parts including the paint nozzle.

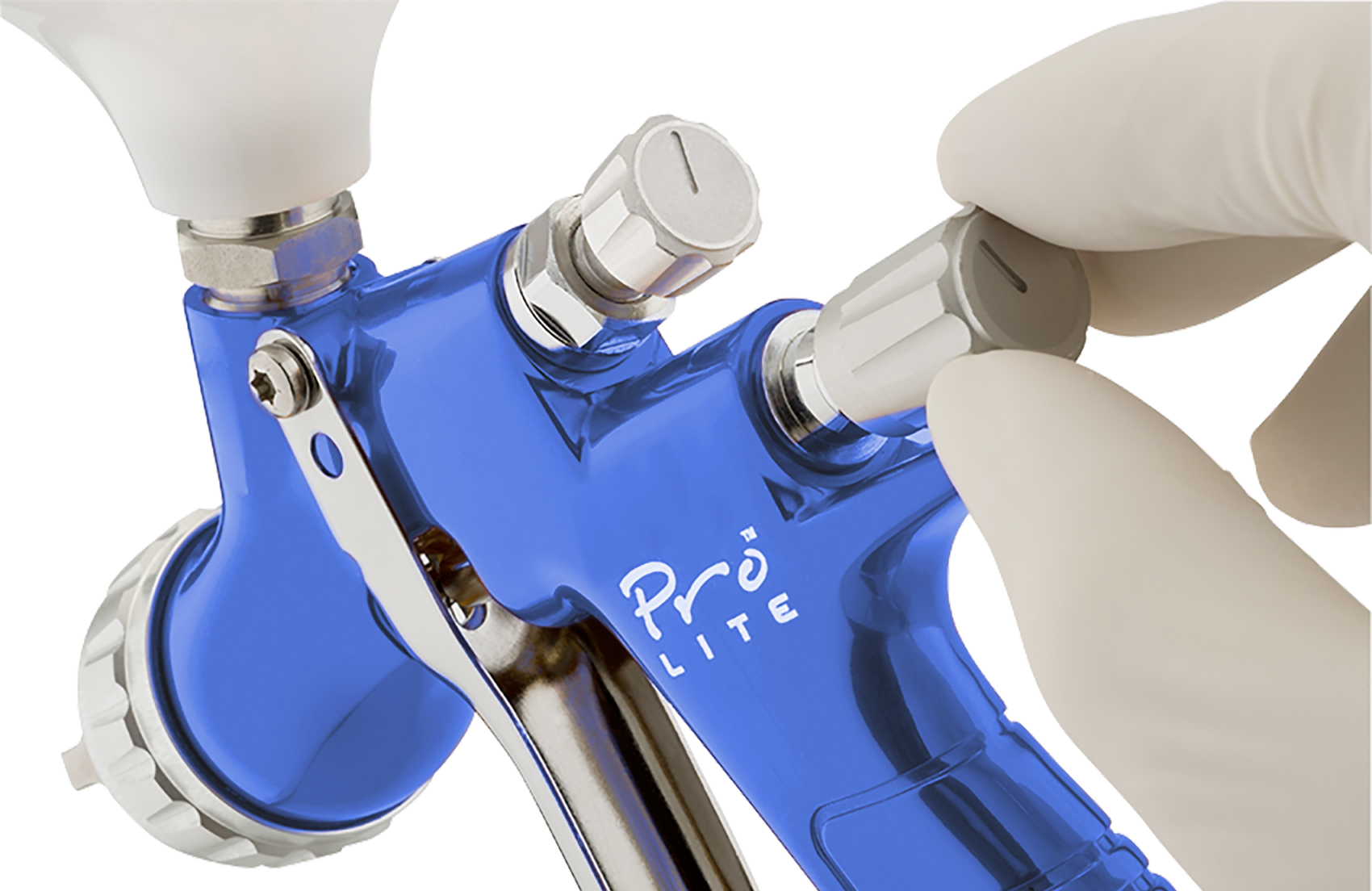

The newly designed spring configuration and smooth screw mechanism make adjustments easy.
Additionally, the redesigned paint passages and easily removable front end allow for thorough internal cleaning
and help prevent issues caused by residual paint.
