UNIGLOBE CLARIO-90 Heat Blocking Film

*Substitute product for UIR-85.
Manufacturer UNIGLOBE
Specifications 1080mm×15m
1080mm×30m
Visible light Transmittance 89.5%
Reflectance 8%
UV Transmittance <1
Solar radiation Transmittance 70%
Reflectance 7%
Absorptance 23%
Shading coefficient 0.89
Thermal transmittance 5.9
Infrared light Transmittance 31%
Reflectance 5%
Solar heat rejection rate 22%
Order unit 1 roll/1m

Order Here

Product name [ordering code] Regular price Member price Qty
UNIGLOBE CLARIO-90 1,080mm x 15m
[51248---]

Login to view price or purchase

UNIGLOBE CLARIO-90 1,080mm x 30m
[51248-30]

Login to view price or purchase

UNIGLOBE CLARIO-90 by the Meter
[51248-01]

Login to view price or purchase

Product Description

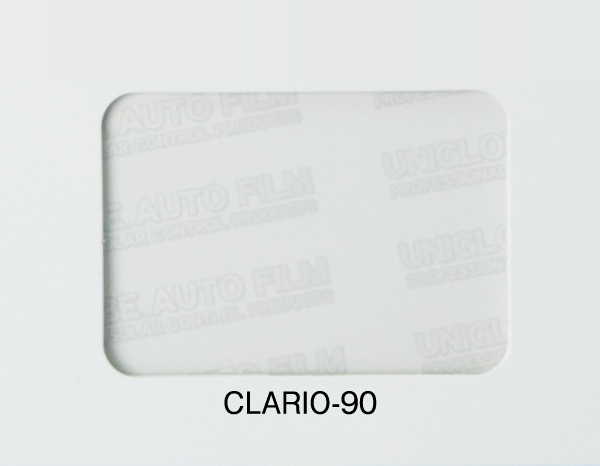

CLARIO-90

CLARIO-89 is a high-performance transparent insulating film with a traditionally exceptional balance of transmittance and insulation. CLARIO-90 is a newly available version which has been improved on all fronts.

Transmittance increased to the extreme

Previously, the overwhelming visible light transmittance of 89.3% allowed for a wide range of application possibilities, but with its recent improvements not only to the PET film itself but even to the adhesive and release liner, these total balanced improvements have now achieved an even higher transmittance of 89.5%.

Insulation performance you can feel

CLARIO uses high-performance ITO as its insulating component, offering excellent insulation while remaining transparent. CLARIO-90 has kept the same basic materials, but by making improvements in the details, such as the manufacturing process and the combination with the backing material, it has succeeded in increasing its insulation in a wide range of infrared, offering insulation that you can truly feel.

Excellent ease of use

Due to its high transmittance, CLARIO-90 can also be applied to the front windshields of many vehicles. Various factors which affect application have been comprehensively reconsidered and balanced to a high degree, such as the all-important thermoforming, film shrinkage, and adhesive strength, all of which has resulted in making CLARIO-90 easier to apply.

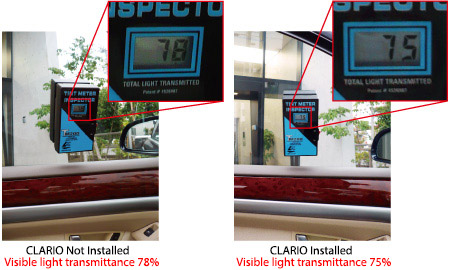

Using a TINTMETER in the driver’s seat of an Audi A8, visible light transmittance was measured at 78% before application and 75% after application, a small difference of only 3%. Even after taking into account the measurement error of the measuring device, the value sufficiently conforms to safety standards.

*Please note that this is simply a practically measured value and does not constitute data which can guarantee conformity with safety standards for the same vehicle model.

*When applying film to all windows, the driver side window, or the passenger side window, the safety standards for road vehicles require that the film’s transmittance of visible light be at least 70%. In fact, the value differs by vehicle. For a more accurate understanding of these values, please check with the land transportation bureau of your district.

Overturning the status quo of conventional transparent insulating films with an amazing transmittance of 89.5%

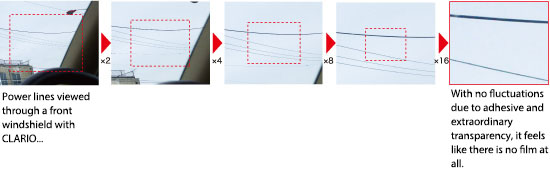

This never-before-seen transmittance provides a clear view, and it can be applied to a wide range of driver and passenger windows which often require transparent insulation film. Using a TINTMETER or other transmittance measuring device, you can confirm the transmittance and issue a certificate for it.

Efficiently reduces sunlight and cuts near infrared (IR) by 71.5% without blocking visibility

Using a carefully selected insulating material (ITO), it efficiently insulates while remaining transparent. Lowering the interior temperature allows the air conditioning to work more effectively, saving energy and making your vehicle more eco-friendly.
*The reduction value is calculated within the range of 1500nm to 2200nm.

Of course all the basic functions are present too

One of the film’s most fundamental functions is blocking more than 99% of UV radiation, protecting the delicate skin of women and babies from its harmful effects, as well as reducing the deterioration of the vehicle interior. Additionally, the film contributes to improved safety, by preventing glass from shattering in the event of an accident. Furthermore, because it does not block electromagnetic radiation, it will not affect cell phones, ETC, TV, or GPS navigation systems.

»How this amazing combination of transmittance and insulation was achieved«

* When purchasing by the meter, please be sure to specify the length that you desire.
* We will get back to you about the price.
* When you click "Add to shopping cart," ¥0 will be displayed as a temporary price.
