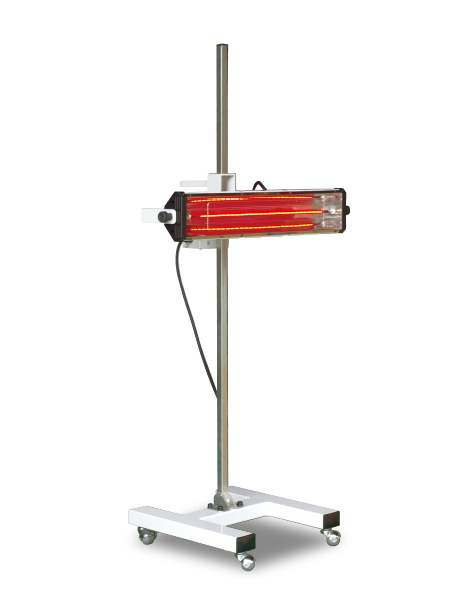

HEAT-UP+ 1-bulb type

HEAT-UP+ 1-bulb type

NOTE: To see the following list, please swipe it to the left or right.

  Near infrared lamp
(ruby lamp)
Near infrared lamp
(clear lamp)
Mid-infrared lamp Carbon fiber lamp
Format HUNS-1 HUNC-1 HUNM-1 HUNK-1
Lamp 1.2kW×1 1.2kW×1 1.0kW×1 1.0kW×1
Capacitance 1.2kW 1.2kW 1.0kW 1.0kW
Power source, plug Single-phase 200V, 20A, 3P, with earth (5m cord)
Irradiation area 684(W)×140(H)
Timer 60 minutes Timer×1

Order Here

Product name [ordering code] Regular price Member price Qty
HEAT-UP+ 1-bulb type HUNS-1
[03146-22]

Login to view price or purchase

HEAT-UP+1-bulb type HUNC-1
[03146-23]

Login to view price or purchase

HEAT-UP+1-bulb type HUNM-1
[03146-24]

Login to view price or purchase

HEAT-UP+1-bulb type HUNK-1
[03146-25]

Login to view price or purchase

Product Description

The previous Heatup series’ functions have been made even easier to use. We offer 4 types to choose from to fit your needs. You can also choose from 4 types of lamp. They are high stroke compatible and can easily irradiate from high places. The lamp also uses a separate bank, is multi-jointed, and when used with a rotating mechanism it can be used in any position.

▶The heater bank height adjuster is lever operated

The switch box is integrated in the elevator to make it more compact.

1-and 2-lamp types

It can be raised and lowered smoothly with one hand.

▶Durability has been increased and costs reduced.

It is now easier to use with a digital timer which displays remaining time.

It is equipped with individual switches for each lamp to prevent unnecessary irradiation of some parts and thereby save energy.

3- and 6-lamp types

●Safety design (installed breakers, relays) to fit the properties of Japanese products
●Passed ON/OFF test of more than 15000 times

▶Can be used in any work environment with the right combination

Lamp Variation

It can be converted into 4types of heater lamp simply by exchange lamps.

S type Near infrared ruby lamp

To prevent dazzling, a "red film" produces 90% clear output.
With preliminary drying timer

M type Mid-infrared lamp

With slightly less penetration power than near infrared, it is easy to use. Best for drying plastic parts.
With preliminary drying timer

C type Near infrared clear lamp

Starts up quickly and can dry in a short time.

With preliminary drying timer

K type Carbon fiber lamp

With the closest wavelength to that absorbed by water, it is best used for drying water-based paints.
With preliminary drying timer

Damper Type

Smooth raising and lowering High stroke

Able to secure a vertical stroke of more than 1.8m, it can dry the roofs of high-roofed vehicles.

Separate Type

Each bank’s angle can be adjusted to conform to the curved surfaces of a body. Placing them a set distance away from the painted surface will achieve a uniform drying.
