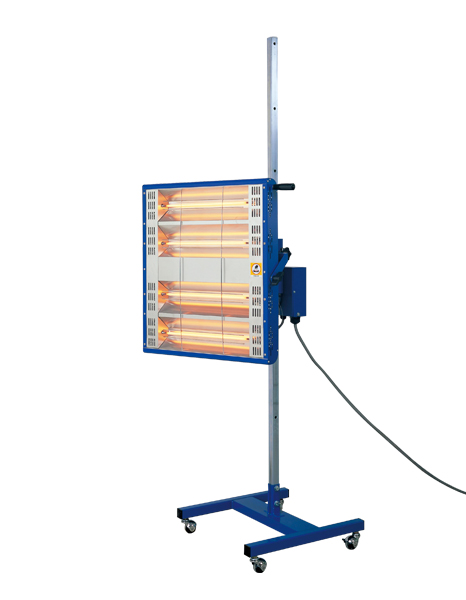

| Model | UC400 |
| Heater types | Sintered carbon block |
| Rated power | Three-phase, 200V 20A |
| Power consumption（kW） | 3.6 |
| Irradiation area（mm） | 605×670 |
| Dimensions（Height×Width×Depth）（mm） | 2,040×605×585 |
| Power code | 10m |
| Plug | 4P 20A |
| Timer | Max. 99min 50sec |
| Switch separation | 2 |
| Mass (kg) | 34 |
